| Shell Size / 外殼尺寸 | 20 |
|---|---|
| Contacts / 導梢數 | 2、3、4、5、7、12 |
| TYPE / 類型 | Adapter (AD) / 中繼、Plug (P) / 插頭、Receptacle (R) / 插座、Female (F) / 導梢、Male (M) / 導針、Nylon type (WGP) / 尼龍管式、Cap (Ca) / 保護蓋、Conduit type (GP) / 軟管式 |
| Water proof / 防水 | 否 |
| Safety Certification / 安規認證 | UL Approved、TÜV Approved |
| Others / 其它 | Side Scrrws / 側邊螺絲 |
| RoHS / 歐盟環保指令 | RoHS 2.0 |
相關型號：
[ PLS-20❖-PF X-R ]
[ PLS-20❖-GPF3 X-R ]
[ PLS-20❖-WGPF3 X-R ]

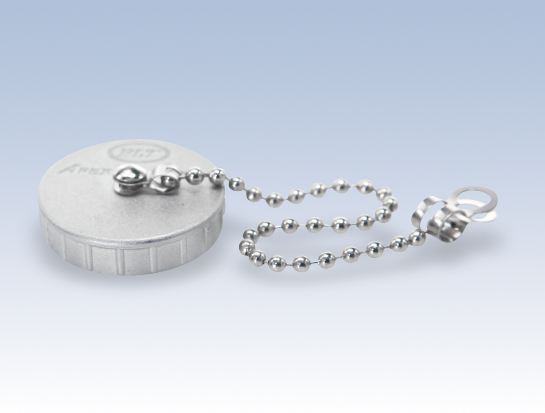

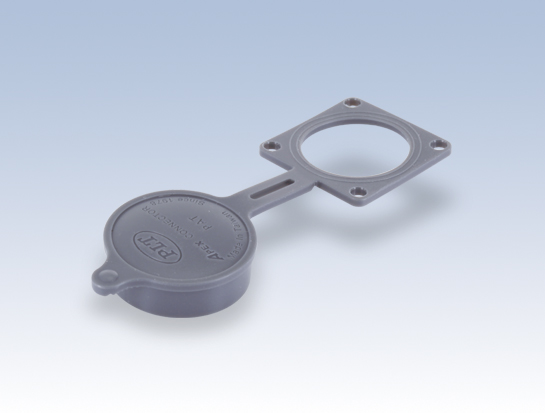

[ PLS-20C-RCaC-R ]
[ PLS-20❖-RM-R ]
[ PLS-20❖-ADM-R ]
[ PLS-20❖-ADGM-R ]
[ A-587PX ]
| ❖ No. of contacts | 2 | 3 | 4 | 5 | 7 | 12 |
|---|---|---|---|---|---|---|
| Contacts Configuration |  |
 |
 |
 |
 |
|
| Rated current / voltage | 15A 250V | 15A 250V | 10A 250V | 10A 250V | 10A 250V | 5A 250V |
| Operating voltage limit (AC.V.rms) | 250 | 250 | 250 | 250 | 250 | 250 |
| Withstanding voltage (AC.V.rms) 1 minute | 1500 | 1500 | 1000 | 1000 | 1000 | 1000 |
| Insulation resistance (MΩ MIN.) at DC 500V | 2000 | 2000 | 2000 | 2000 | 2000 | 1000 |
| Contact resistance (mΩ MAX.) at DC 1A | 3 | 3 | 3 | 3 | 3 | 5 |
| Solder internal diameter | 1.8 | 1.8 | 1.6 | 1.6 | 1.6 | 1.2 |
